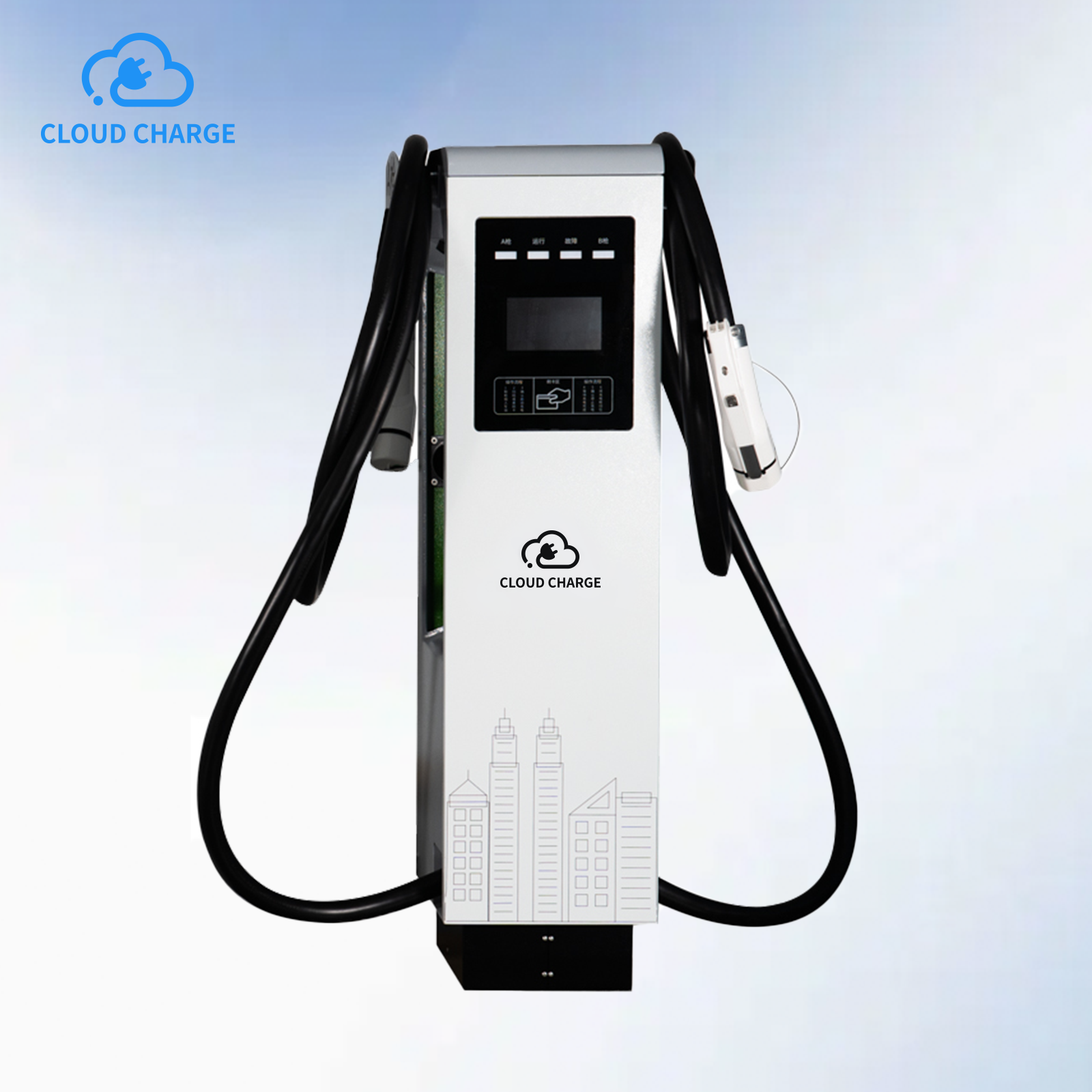

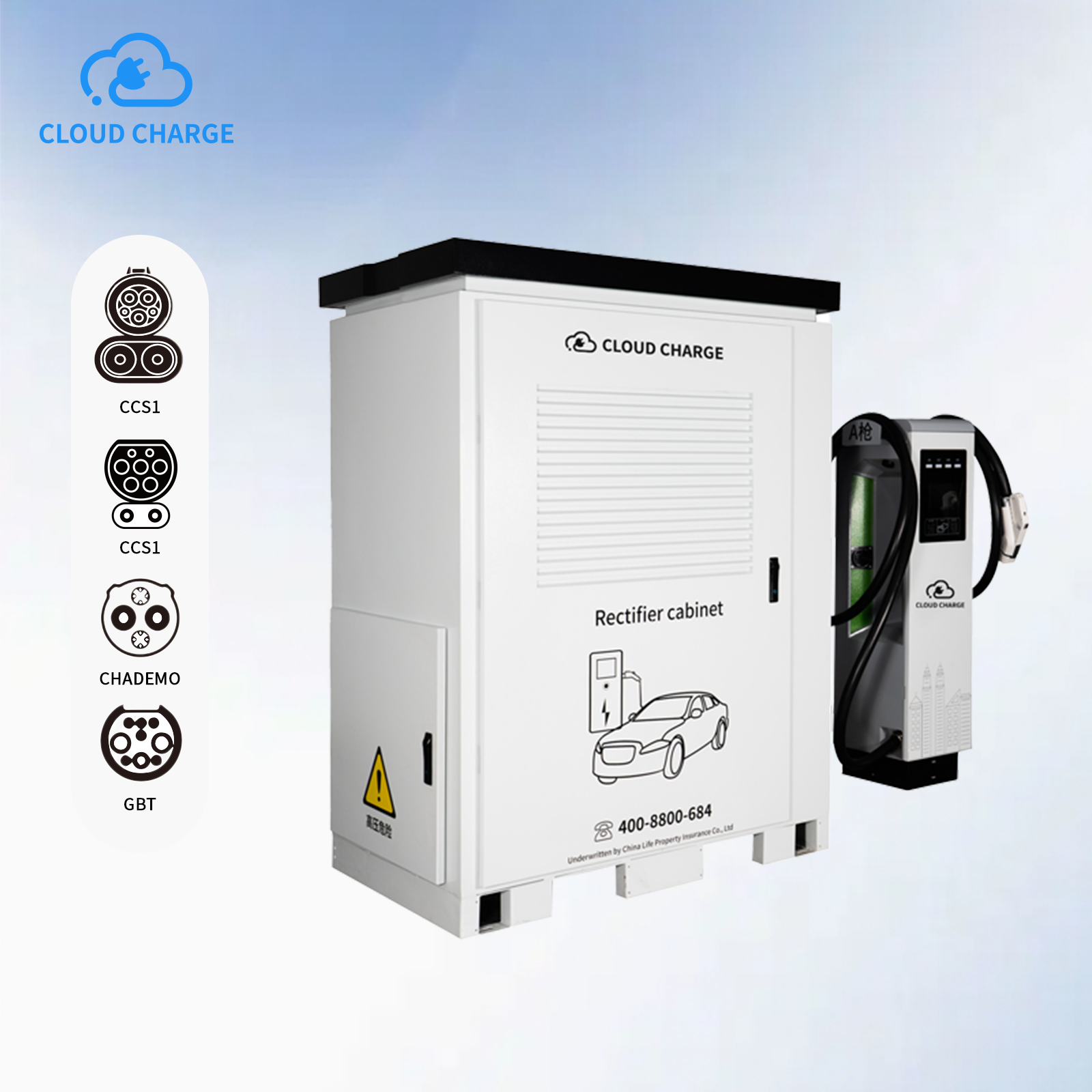

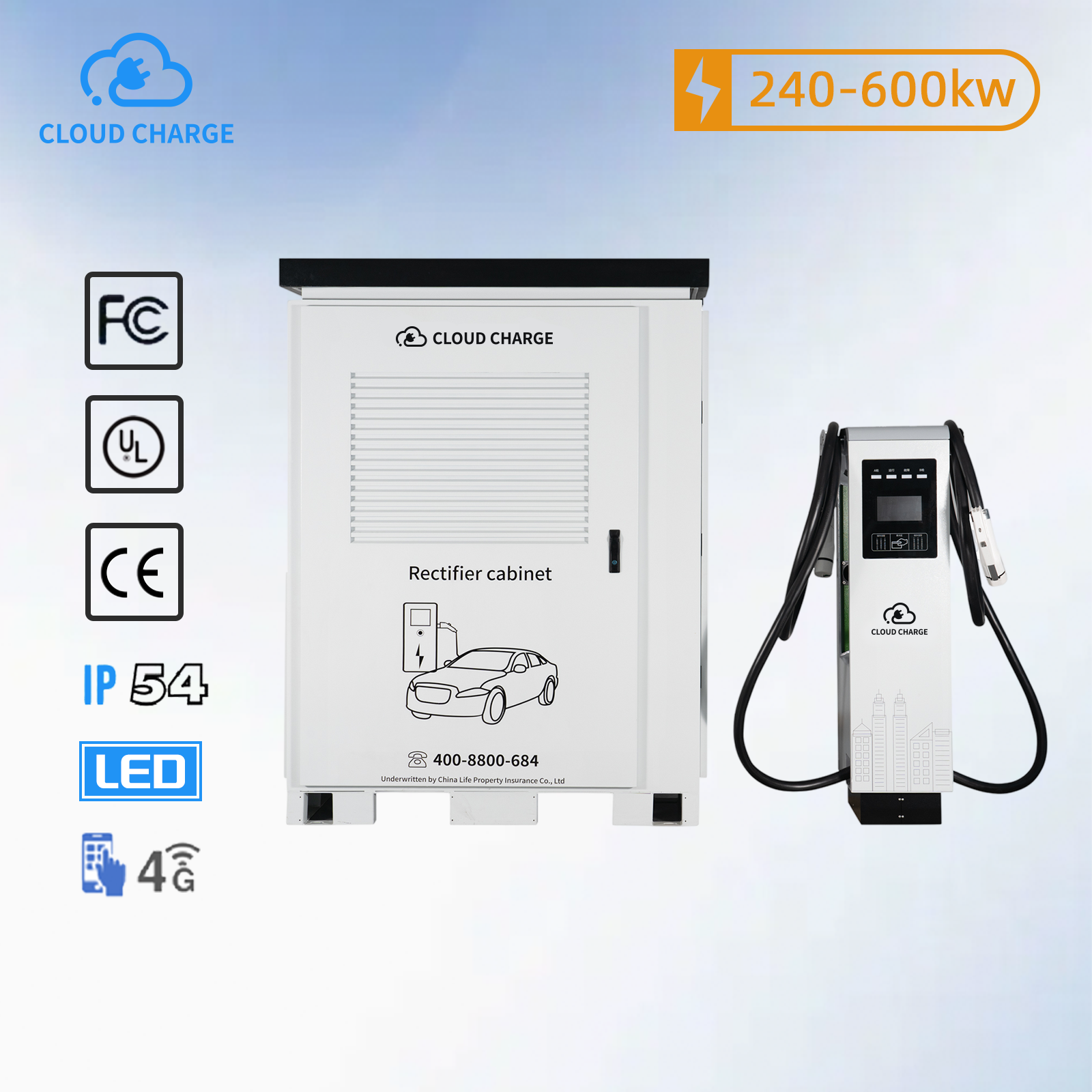

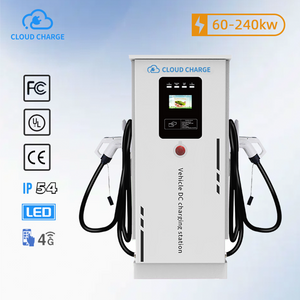

Split-Type DC Fast EV Charger | Remote Power Cabinet + Charging Terminal
The Split DC EV Charger from Zhenwan is a high-performance fast-charging solution that separates the power conversion unit (rectifier cabinet) from the user-facing charging terminal. This design allows for flexible installation, low noise at the terminal, and high-power centralized charging—perfect for large-scale deployments such as bus depots, logistics fleets, highway service stations, and urban EV hubs. The system supports OCPP, CAN communication, and modular power expansion.
{"json":"[{\"index\":\"0\",\"tran_label\":\"Model\",\"tran_value\":[\"ZW-EV-CPDC Series\"]},{\"index\":\"1\",\"tran_label\":\"Rated Power\",\"tran_value\":[\"240KW/360KW/480KW/600KW\"]},{\"index\":\"2\",\"tran_label\":\"Input Current\",\"tran_value\":[\"365A/547A/729A/1000A\"]},{\"index\":\"3\",\"tran_label\":\"Output Circuits\",\"tran_value\":[\"4 Circuits/6 Circuits/8 Circuits/10 Circuits\"]},{\"index\":\"4\",\"tran_label\":\"Input Voltage\",\"tran_value\":[\"AC380V±20%\"]},{\"index\":\"5\",\"tran_label\":\"Output Voltage Range\",\"tran_value\":[\"DC200V-1000V (Optional)\"]},{\"index\":\"6\",\"tran_label\":\"Maximum Output Current per Circuit\",\"tran_value\":[\"10-250A\"]},{\"index\":\"7\",\"tran_label\":\"Constant Power Output Voltage Range\",\"tran_value\":[\"DC300V-1000V (Optional)\"]},{\"index\":\"8\",\"tran_label\":\"Efficiency\",\"tran_value\":[\"≥95% (50%-100% Full Load Output Power)\"]},{\"index\":\"9\",\"tran_label\":\"Power Factor\",\"tran_value\":[\"≥0.99 (50%-100% Full Load Output Power)\"]},{\"index\":\"10\",\"tran_label\":\"Voltage Regulation Accuracy\",\"tran_value\":[\"≤±0.5%\"]},{\"index\":\"11\",\"tran_label\":\"Current Regulation Accuracy\",\"tran_value\":[\"≤±1% (Output Load 20%-100% Rated Range)\"]},{\"index\":\"12\",\"tran_label\":\"Current Sharing Imbalance\",\"tran_value\":[\"≤±5%\"]},{\"index\":\"13\",\"tran_label\":\"Ripple Peak-to-Peak Value\",\"tran_value\":[\"≤±1%\"]},{\"index\":\"14\",\"tran_label\":\"Insulation Resistance\",\"tran_value\":[\"≥220MΩ\"]},{\"index\":\"15\",\"tran_label\":\"Protection Grade\",\"tran_value\":[\"IP54\"]},{\"index\":\"16\",\"tran_label\":\"Noise\",\"tran_value\":[\"≤60dB\"]},{\"index\":\"17\",\"tran_label\":\"Cooling Method\",\"tran_value\":[\"Forced Air Cooling\"]},{\"index\":\"18\",\"tran_label\":\"ITHD\",\"tran_value\":[\"≤5% (50%-100% Full Load Output Power)\"]},{\"index\":\"19\",\"tran_label\":\"Communication Method with Terminal Cabinet\",\"tran_value\":[\"CAN Communication\"]},{\"index\":\"20\",\"tran_label\":\"Operating Temperature:\",\"tran_value\":[\"-20°C-50°C\"]},{\"index\":\"21\",\"tran_label\":\"Storage Temperature:\",\"tran_value\":[\"-40°C-70°C\"]},{\"index\":\"22\",\"tran_label\":\"Relative Humidity\",\"tran_value\":[\"5%-95%\"]},{\"index\":\"23\",\"tran_label\":\"Altitude\",\"tran_value\":[\"≤2000m\"]},{\"index\":\"24\",\"tran_label\":\"Installation Method\",\"tran_value\":[\"Ground-Mounted\"]},{\"index\":\"25\",\"tran_label\":\"Dimensions\",\"tran_value\":[\"1460mm (Length) * 960mm (Width) * 1960mm (Height)\"]}]","type":"2"}
Model
ZW-EV-CPDC-ZDS
Output Voltage Range
DC200-1000V (optional)
Maximum Output Current per Circuit
10-250A
Constant Power Output Voltage Range
DC300-1000V (optional)
Rated Output Power
60KW
Maximum Output Power
240KW
Auxiliary Power Supply
DC12/24V
Electric Energy Metering
Accuracy Class 1.0
Display Mode
10.1-inch Screen
Charging Modes
Automatic Full Charge
By Time
By Energy
By Amount
Starting Methods
Card Swipe
Scan Code
Password
VIN
Protection Functions
Short Circuit
Over-temperature
Over-current
Leakage Current
Over-voltage & Under-voltage
etc.
Charging Method
Full Power Charging
AB Equalizing Charging
Insulation Resistance
≥20MΩ
Communication with Rectifier Cabinet
CAN Communication
Networking Mode
4G
Protection Grade
IP54
Operating Temperature
-20°C to 50°C
Storage Temperature
-40°C to -70°C
Relative Humidity
5% to 95%
Altitude
≤2000 meters
Installation Method
Floor-mounted Installation
Dimensions
710mm Width x 1656mm Height x 495mm Depth
{"json":"[{\"index\":\"0\",\"tran_label\":\"Model\",\"tran_value\":[\"ZW-EV-CPDC-ZDS\"]},{\"index\":\"1\",\"tran_label\":\"Output Voltage Range\",\"tran_value\":[\"DC200-1000V (optional)\"]},{\"index\":\"2\",\"tran_label\":\"Maximum Output Current per Circuit\",\"tran_value\":[\"10-250A\"]},{\"index\":\"3\",\"tran_label\":\"Constant Power Output Voltage Range\",\"tran_value\":[\"DC300-1000V (optional)\"]},{\"index\":\"4\",\"tran_label\":\"Rated Output Power\",\"tran_value\":[\"60KW\"]},{\"index\":\"5\",\"tran_label\":\"Maximum Output Power\",\"tran_value\":[\"240KW\"]},{\"index\":\"6\",\"tran_label\":\"Auxiliary Power Supply\",\"tran_value\":[\"DC12/24V\"]},{\"index\":\"7\",\"tran_label\":\"Electric Energy Metering\",\"tran_value\":[\"Accuracy Class 1.0\"]},{\"index\":\"8\",\"tran_label\":\"Display Mode\",\"tran_value\":[\"10.1-inch Screen\"]},{\"index\":\"9\",\"tran_label\":\"Charging Modes\",\"tran_value\":[\"Automatic Full Charge\",\"By Time\",\"By Energy\",\"By Amount\"]},{\"index\":\"10\",\"tran_label\":\"Starting Methods\",\"tran_value\":[\"Card Swipe\",\"Scan Code\",\"Password\",\"VIN\"]},{\"index\":\"11\",\"tran_label\":\"Protection Functions\",\"tran_value\":[\"Short Circuit\",\"Over-temperature\",\"Over-current\",\"Leakage Current\",\"Over-voltage & Under-voltage\",\"etc.\"]},{\"index\":\"12\",\"tran_label\":\"Charging Method\",\"tran_value\":[\"Full Power Charging\",\"AB Equalizing Charging\"]},{\"index\":\"13\",\"tran_label\":\"Insulation Resistance\",\"tran_value\":[\"≥20MΩ\"]},{\"index\":\"14\",\"tran_label\":\"Communication with Rectifier Cabinet\",\"tran_value\":[\"CAN Communication\"]},{\"index\":\"15\",\"tran_label\":\"Networking Mode\",\"tran_value\":[\"4G\"]},{\"index\":\"16\",\"tran_label\":\"Protection Grade\",\"tran_value\":[\"IP54\"]},{\"index\":\"17\",\"tran_label\":\"Operating Temperature\",\"tran_value\":[\"-20°C to 50°C\"]},{\"index\":\"18\",\"tran_label\":\"Storage Temperature\",\"tran_value\":[\"-40°C to -70°C\"]},{\"index\":\"19\",\"tran_label\":\"Relative Humidity\",\"tran_value\":[\"5% to 95%\"]},{\"index\":\"20\",\"tran_label\":\"Altitude\",\"tran_value\":[\"≤2000 meters\"]},{\"index\":\"21\",\"tran_label\":\"Installation Method\",\"tran_value\":[\"Floor-mounted Installation\"]},{\"index\":\"22\",\"tran_label\":\"Dimensions\",\"tran_value\":[\"710mm Width x 1656mm Height x 495mm Depth\"]}]","type":"2"}
Reduces terminal footprint and on-site noise
Supports high-power output and multi-terminal deployment
