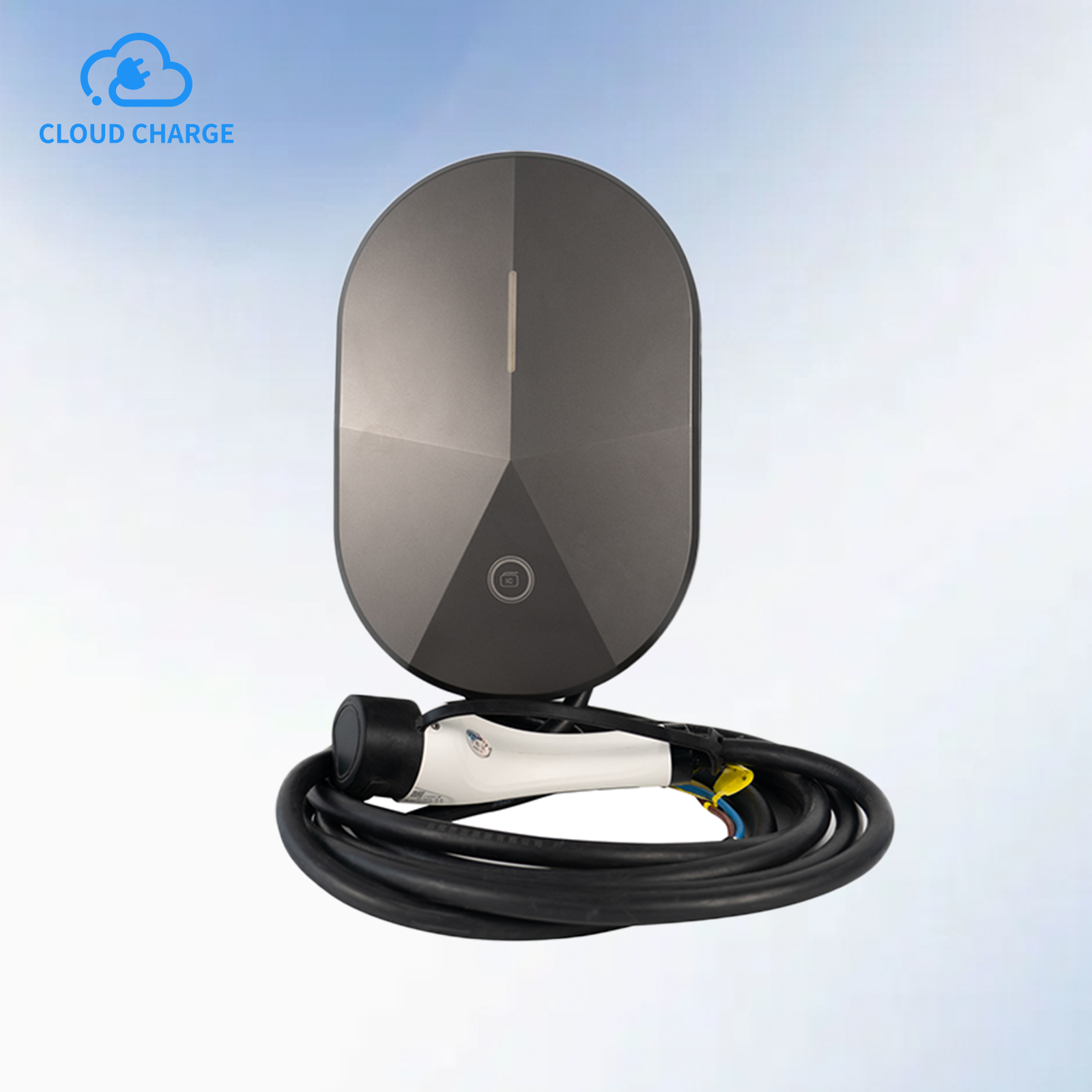

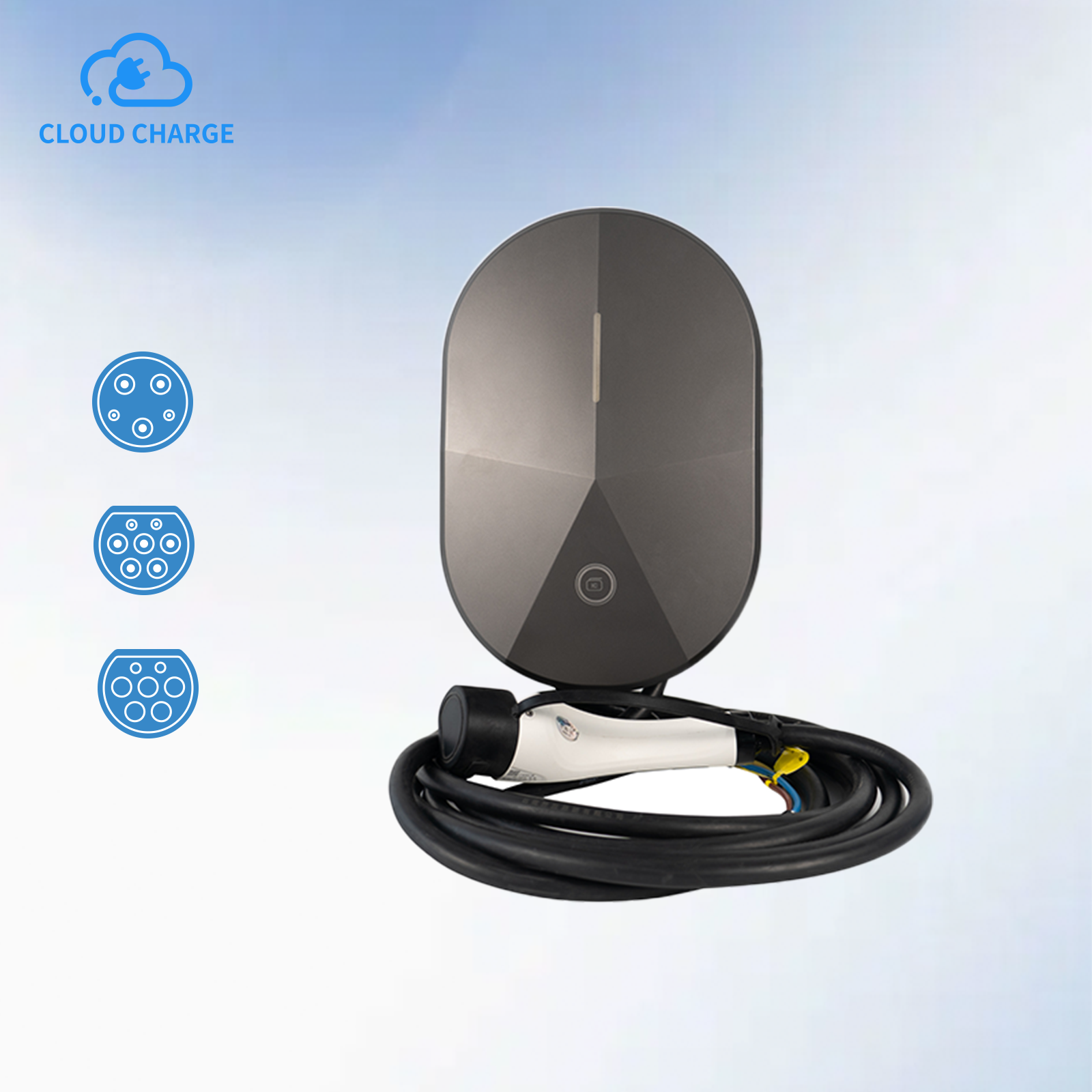

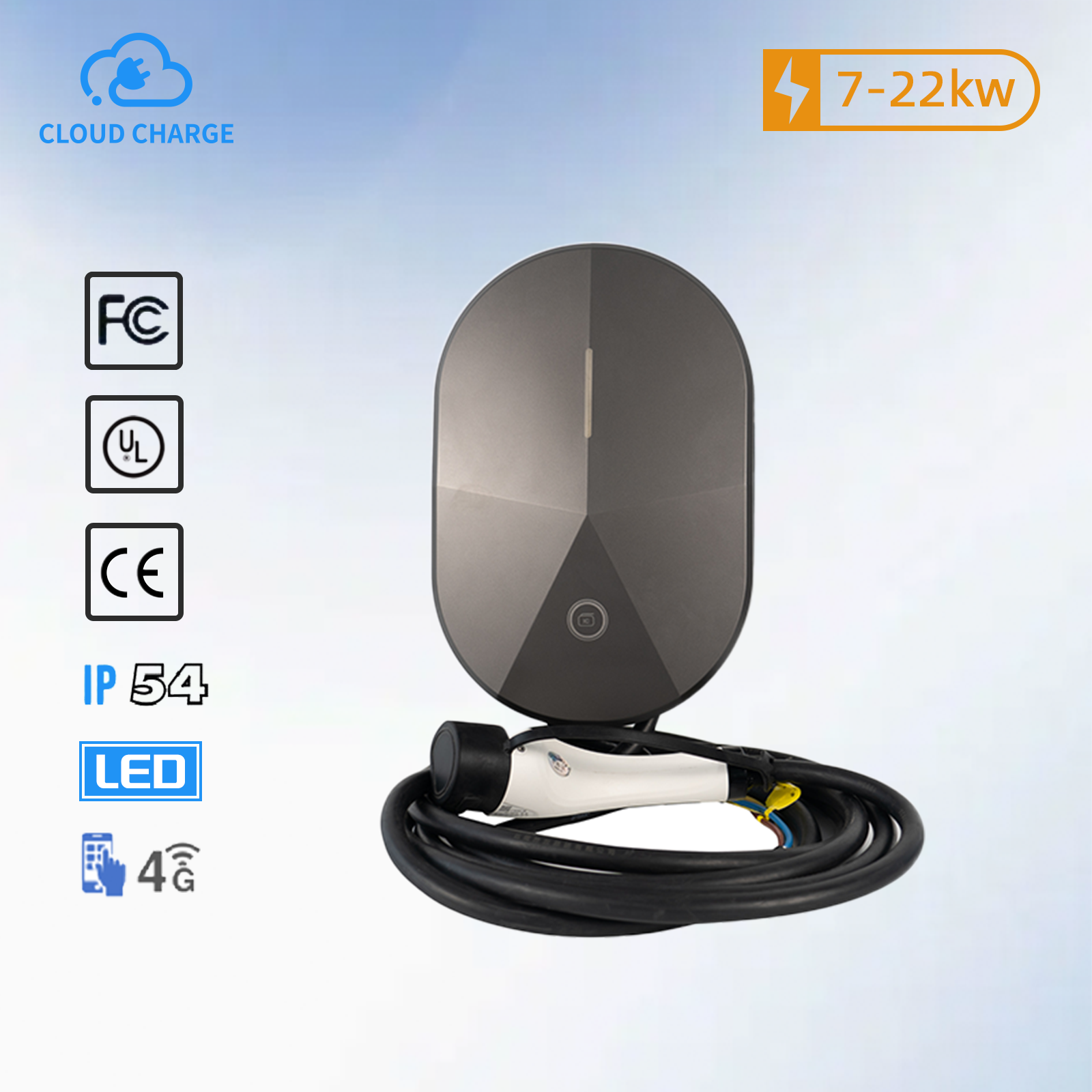

7kW 22kW AC EV Charger

Zhenwan’s 7kW to 22kW AC EV charger provides an affordable and reliable charging solution for residential, commercial, and small fleet applications. With a wall-mounted or floor-standing option, this OCPP-compliant charger is perfect for homeowners, office buildings, and hotel parking lots. Designed with ease of use and installation in mind, it offers fast charging for electric vehicles, while maintaining a compact footprint and energy efficiency.

Availability:
Quantity:
Inquire Add to Basket

Model/PN
1-phase       3-phase
Application
Commercial
Voltage(Vac)
1-phase 230V±20%      3-phase 400V±20%
Frequency(Hz)
50/60Hz
Power Output
7KW
32A                22KW
32A
Current(rms)
16A
32A
Charging Connector
SAE J1772 Type 1
Type-2 connector or Type-2 socket
Charging Cable Length
16ft.(5m)
RCD
Type-B RCD
Energy Meter
CE Certified meter
Buttons
Emergency stop
phisical adjustment
Wi-Fi
Optional
4G
Optional
RFID
ISO 1443 A/B·ISO 15693
Output Protection
output is terminated upon detection of charging
connector plug-out
Data Pretocol
OCPP1.6J
Operation Temp.
‐30ºC~50ºC/‐22ºF~122ºF
Storage Temp.
‐40ºC~70ºC/‐40ºF~158ºF
Working Humidity
5%~95% without condensation
Mounting Type
Wall(default)/Pole
IP Performance
IP54
Dimension(H×W×D,inch)
365*240*100mm  360*240*118mm
Web Portal Management
Yes
Mobile App
ios/Android
Weight(kg)
​6.6kg socket version    10.7kg cable version

  • Cost-effective and ideal for low-power charging needs

  • Flexible installation options for residential and commercial sites

  • Easy-to-use interface with optional smart features

  • Compatible with all major EV brands

  • Exported to Southeast Asia, Europe

臻万科技--详情页_02臻万科技--详情页_03臻万科技--详情页_04臻万科技--详情页_05臻万科技--详情页_06臻万科技--详情页_07臻万科技--详情页_08
