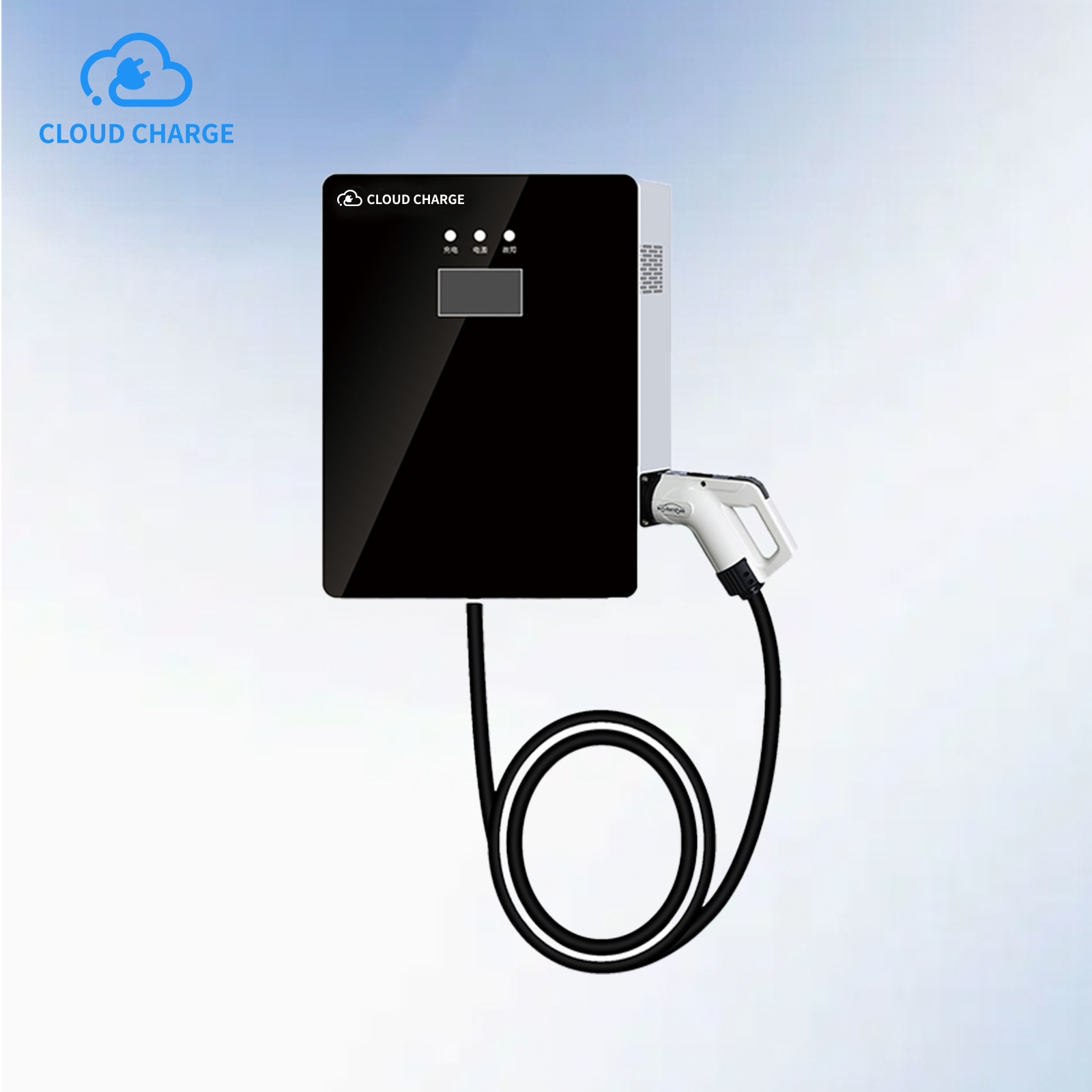

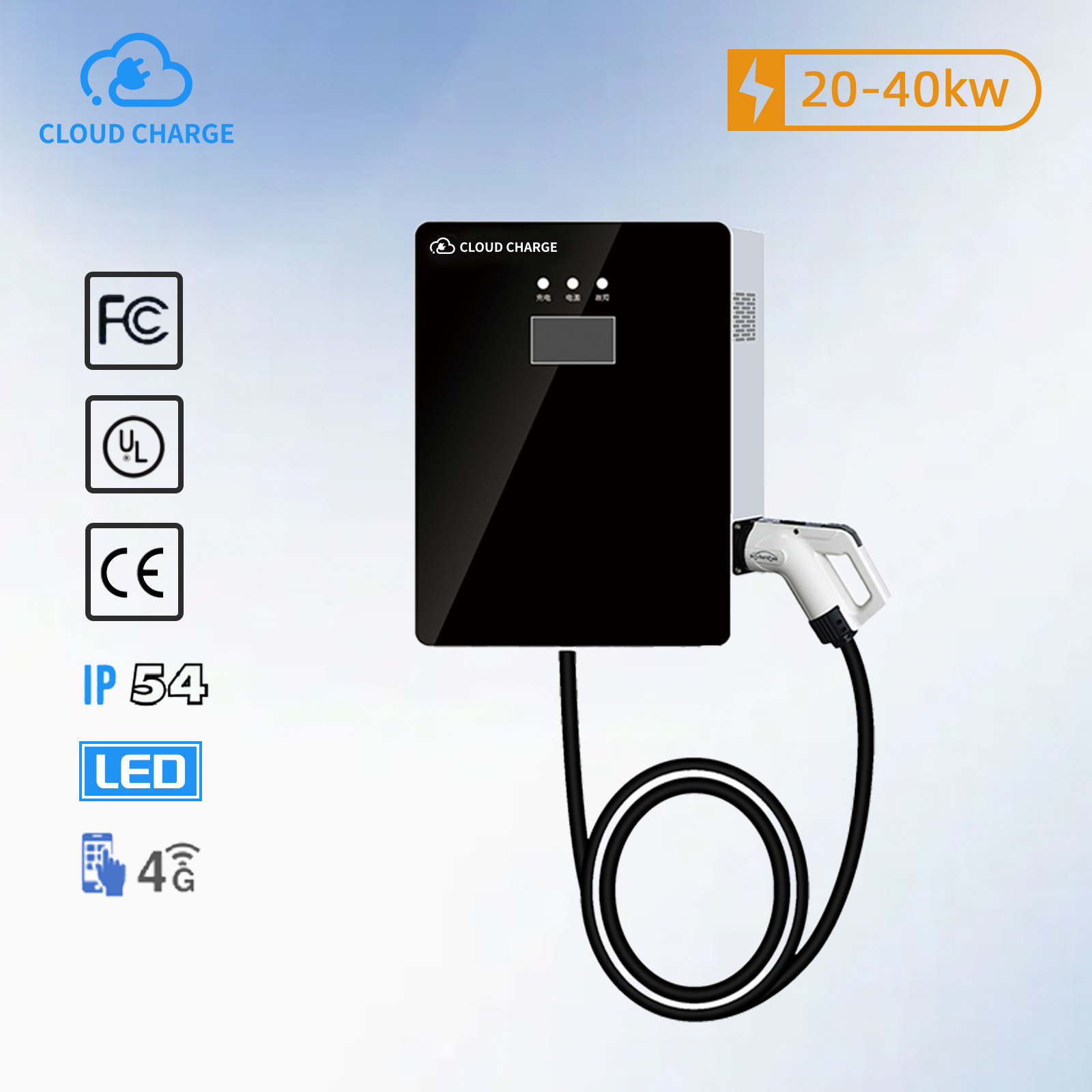

20kW / 30kW / 40kW DC EV Charger

Zhenwan’s 20kW to 40kW compact DC EV charger is a space-saving and cost-effective solution for urban EV charging. Designed with a slim body and flexible installation options, it can be wall-mounted or floor-installed, making it ideal for commercial parking areas, office buildings, and public charging networks. Fully compatible with CCS2 and GB/T connectors and compliant with OCPP, it supports smart charging and seamless platform integration.
Availability:
Quantity:
Inquire Add to Basket

Project
parameter
Power
20kW/30kW/40kW
​Model
1000V-20/30/40kW-Y07-DC(Single gun )

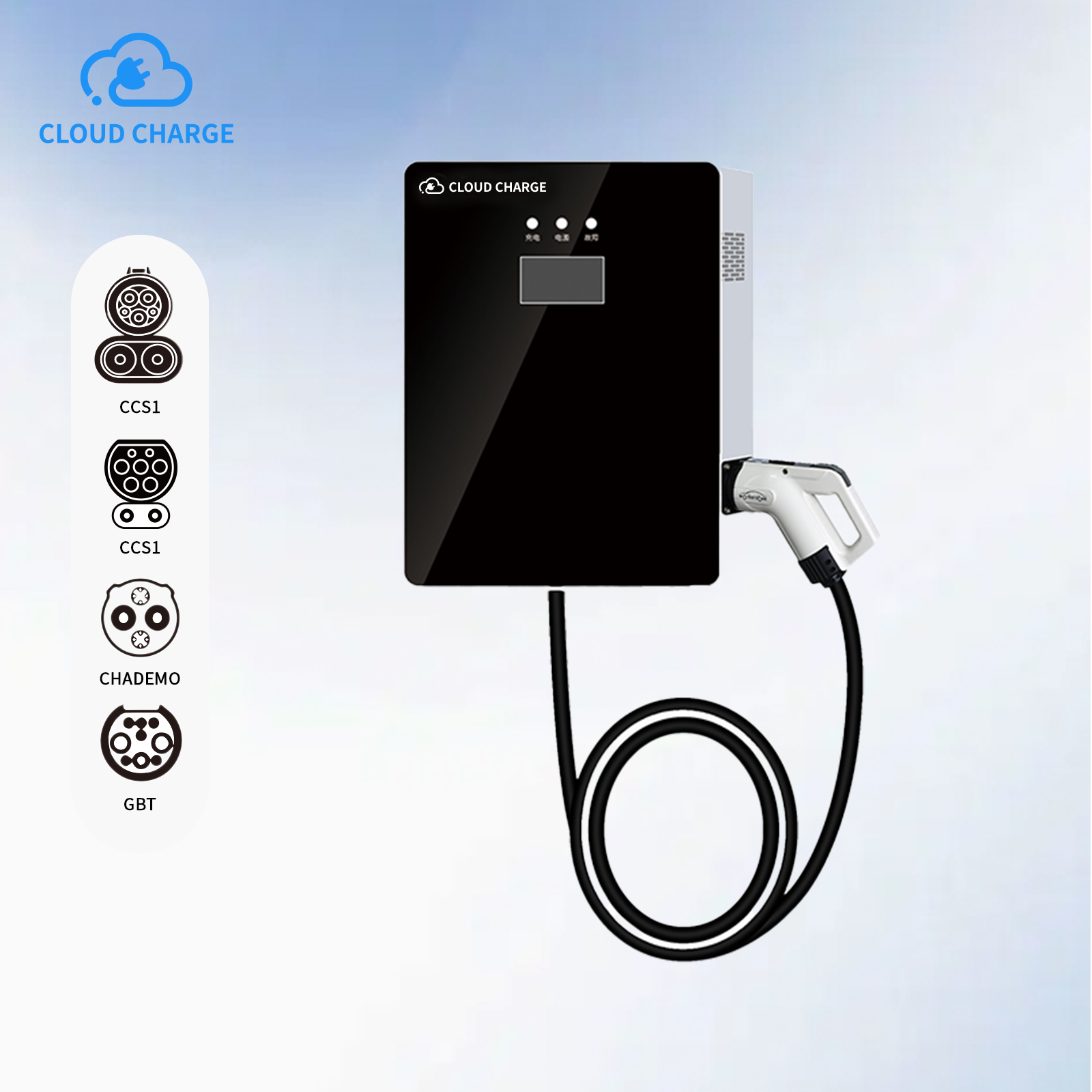

Connector
GBT/CCS1/CHAdeMO/CCS2
Max Power
40kW
Emergency Stop Button
Yes
Communication Protocol
0CPP1.6J Or other
Input Voltage
380V(-25%
+25%)AC
Frequency
50Hz±10%
Output Voltage
50V~1000VDC
Protection Grade
IP54
Power distribution
Single gun
Power factor
≥0.99
Peak efficiency
0.955
Overall efficiency
0.94
auxiliary power supply
12V
humidness
≤95%
Soft startup time
3-8S
Output voltage error
≤±0.5%
Output current error
≥30A
≤±1%;<30A
≤±0.3A.
Voltage accuracy
≤0.5%
Steady flow accuracy
≤1%
Voltage ripple
≤1%
Current sharing
≤5%
Load adjustment rate
≤1%
Starting mode
Swipe card/small program scan code
Insulation resistance
10MΩ
Withstand voltage
AC2500V
Installation mode
Floor/wall hanging
Operating temperature
-35ºC~+55ºC
Charging gun length
3m/4m/5m
Altitude
≤2000m
Harmonic distortion
≤5%

  • Space-efficient design for dense urban settings

  • Easy to deploy and maintain

  • Budget-friendly without sacrificing functionality

  • Smart communication and load management support

  • Exported to multiple countries in Asia and Latin America

臻万科技--详情页_01 臻万科技--详情页_02 臻万科技--详情页_03 臻万科技--详情页_04 臻万科技--详情页_05 臻万科技--详情页_06 臻万科技--详情页_07 臻万科技--详情页_08
