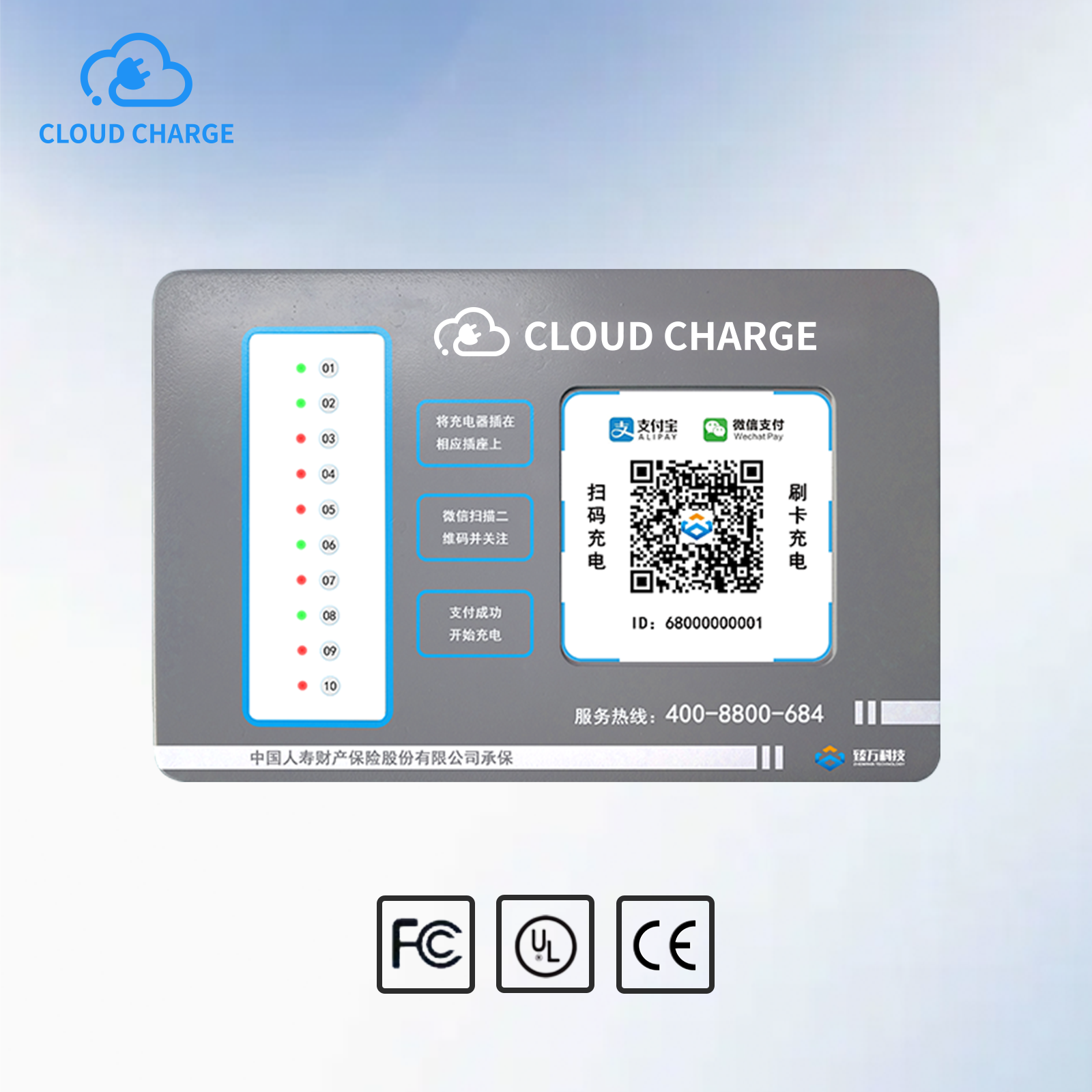

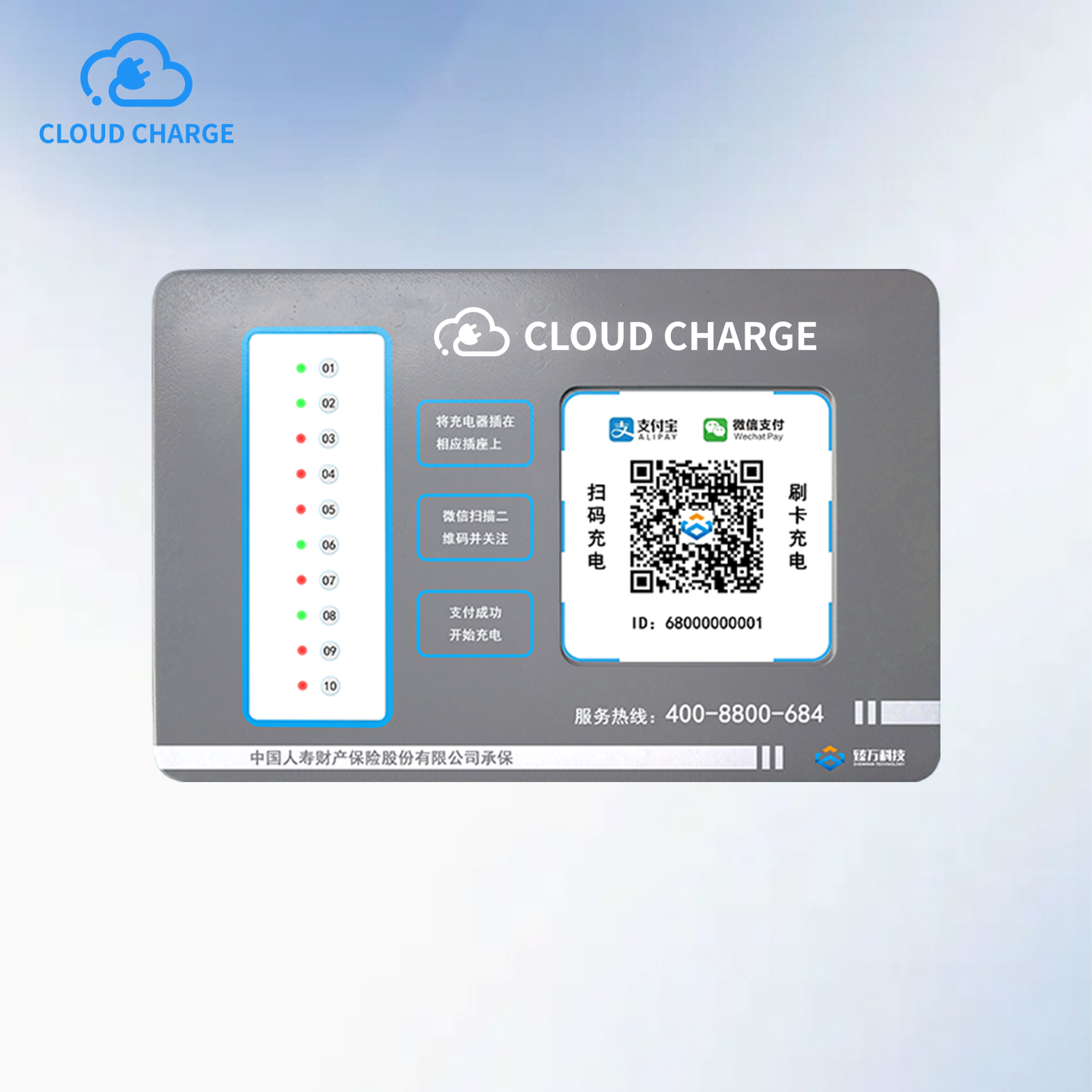

10 way for motorcycle electric bicycle charger

Zhenwan's 10-way electric motorcycle & electric bicycle charger offers a high-efficiency charging solution for small electric vehicles, providing simultaneous charging for up to 10 units. This compact and powerful system is ideal for bike-sharing stations, electric motorcycle rental fleets, and retail charging locations. Equipped with smart charging management and overload protection, this charger ensures fast and safe charging, making it a reliable option for commercial deployments in urban areas.
Availability:
Quantity:
Inquire Add to Basket

Model
ZW-G10-IC
Input Working Voltage
AC 100-220V / 50-60Hz
Maximum Load Power
7KW (Adjustable)
Standby Power
3W
Number of Output Circuits
10 circuits
Single Channel Output Voltage
AC 180V-250V / 50-60Hz Synchronized Output
Single Channel Output Current
5A (Adjustable)
Communication Mode
- 4G / Ethernet (Optional)
Supported Payment Methods
Alipay
WeChat
Card Swipe (Supports coin insertion devices)
Operating Temperature
-20°C ~ 80°C
Operating Humidity
20% - 80% RH
Safety Features
Full metal enclosure
overcurrent
short circuit
overvoltage
undervoltage
surge
overload
charging protection
External Dimensions
360 mm × 240 mm × 88 mm
Weight
3.6KG

  • Multi-port charging for up to 10 vehicles simultaneously

  • Smart charging management ensures optimal energy usage and battery health

  • High compatibility with multiple battery types and voltage configurations

  • Space-efficient design ideal for crowded urban areas

  • Easy integration with bike-sharing systems and fleet management platforms

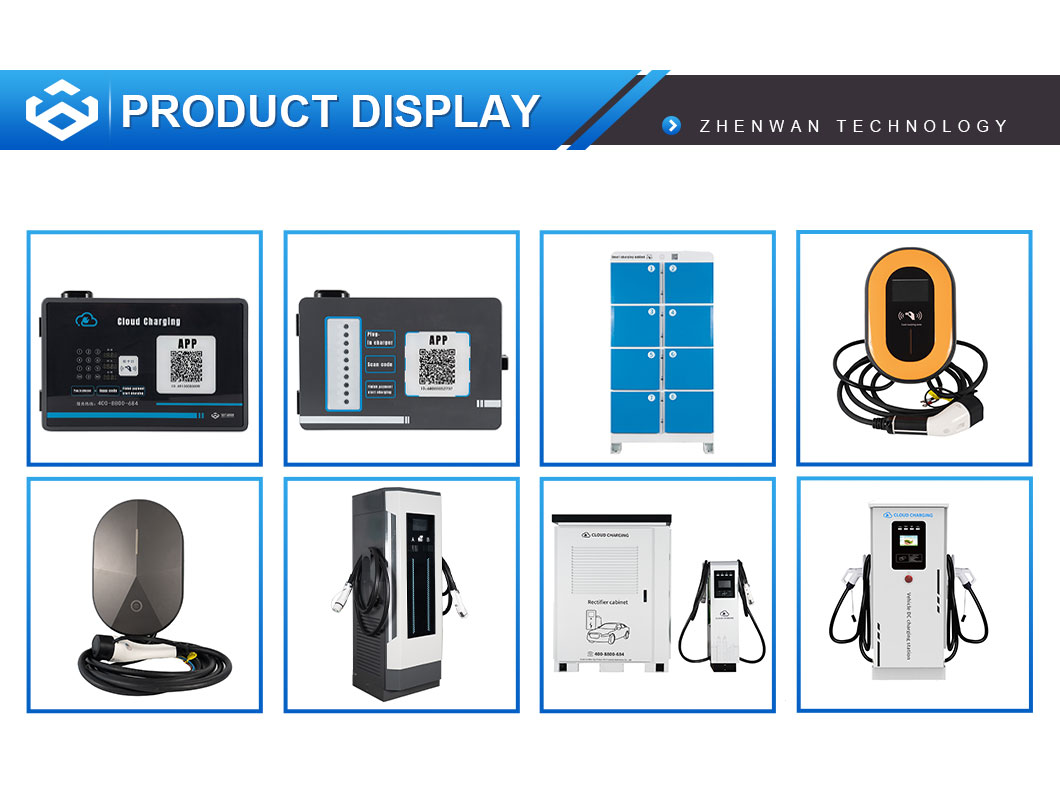

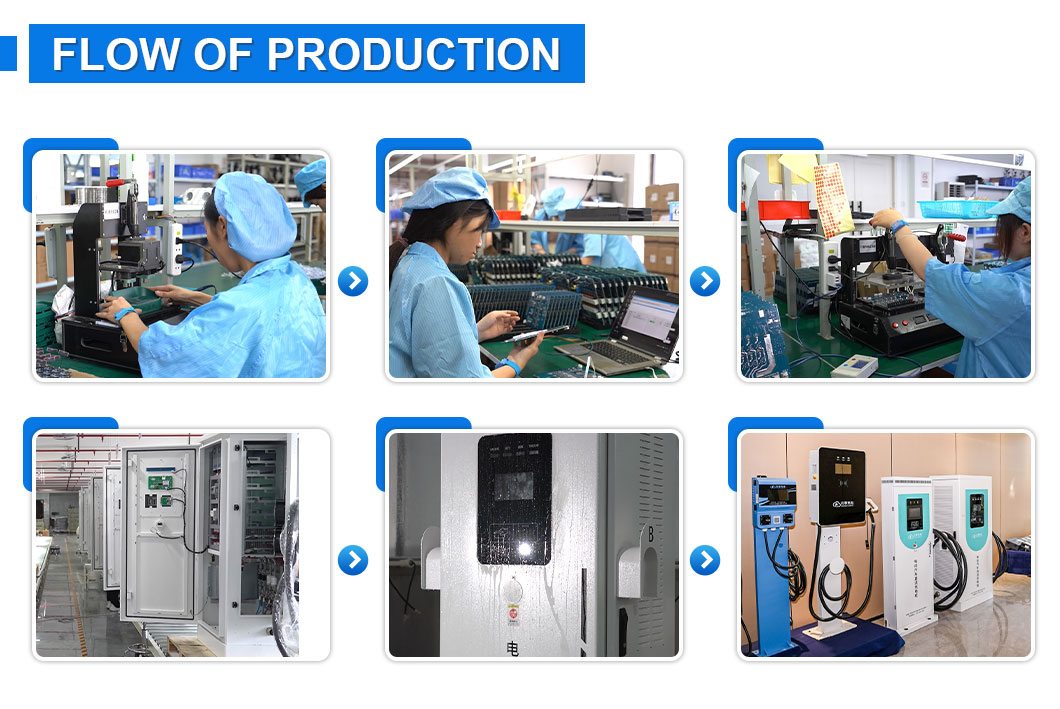

臻万科技--详情页_01臻万科技--详情页_02臻万科技--详情页_03臻万科技--详情页_04臻万科技--详情页_05臻万科技--详情页_06臻万科技--详情页_07臻万科技--详情页_08
