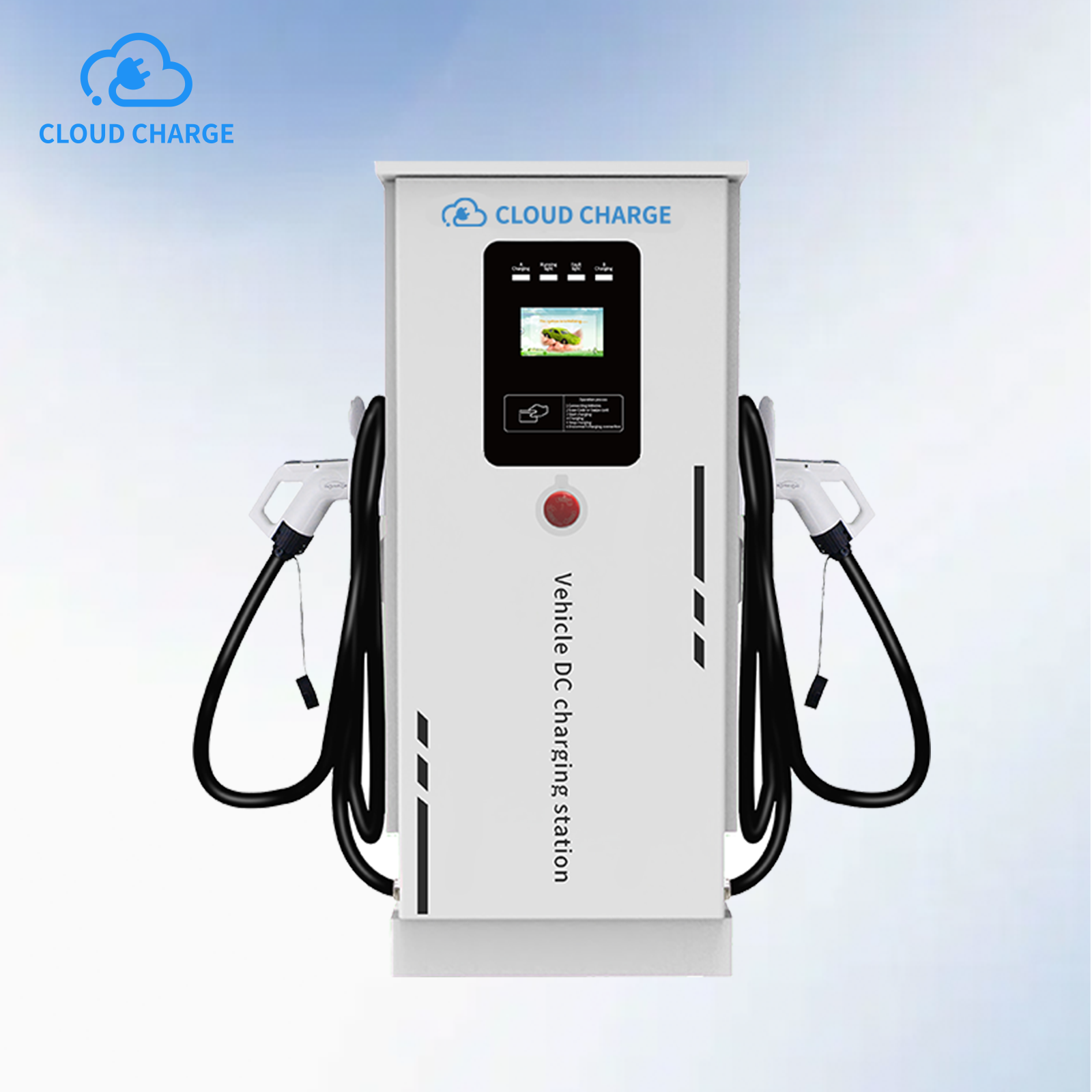

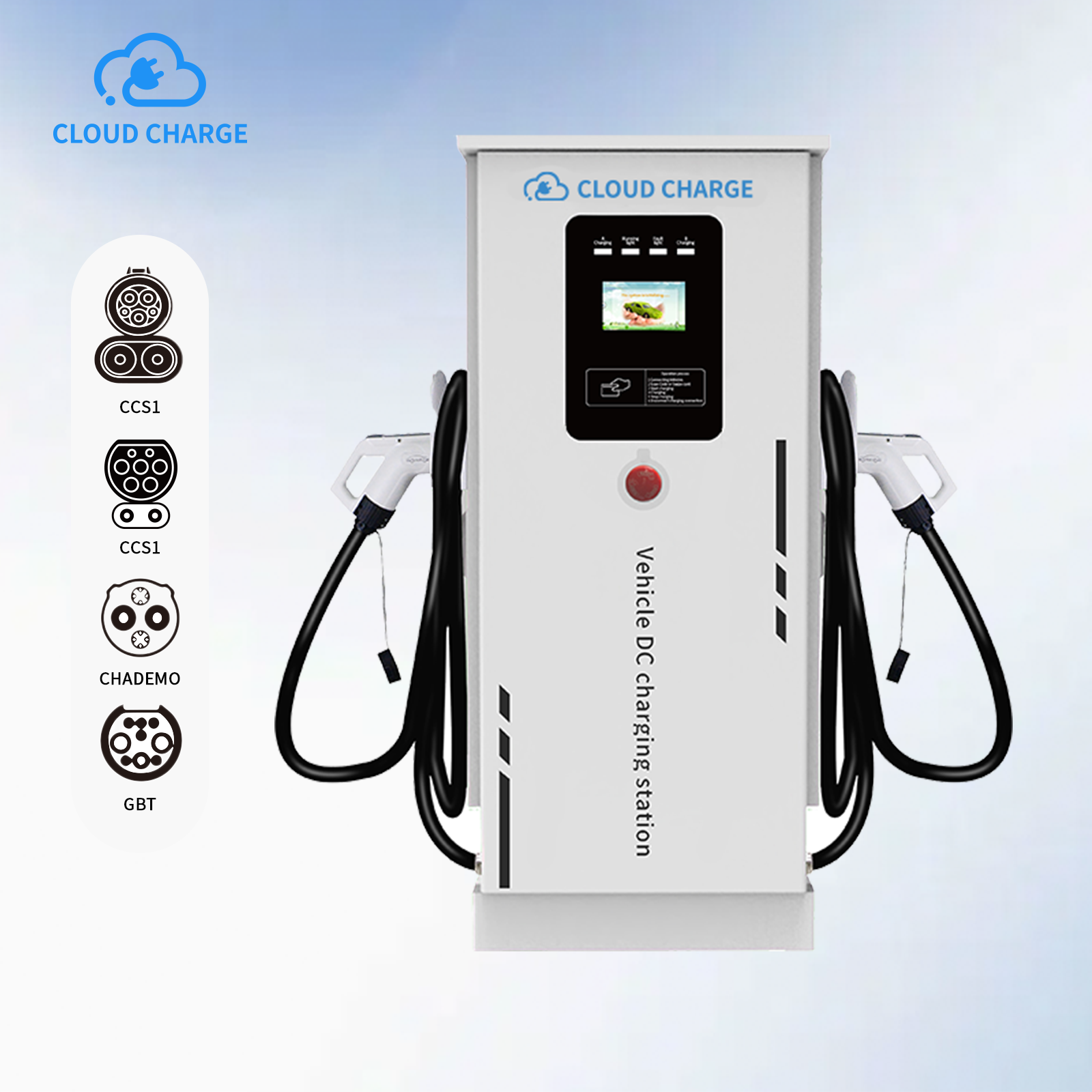

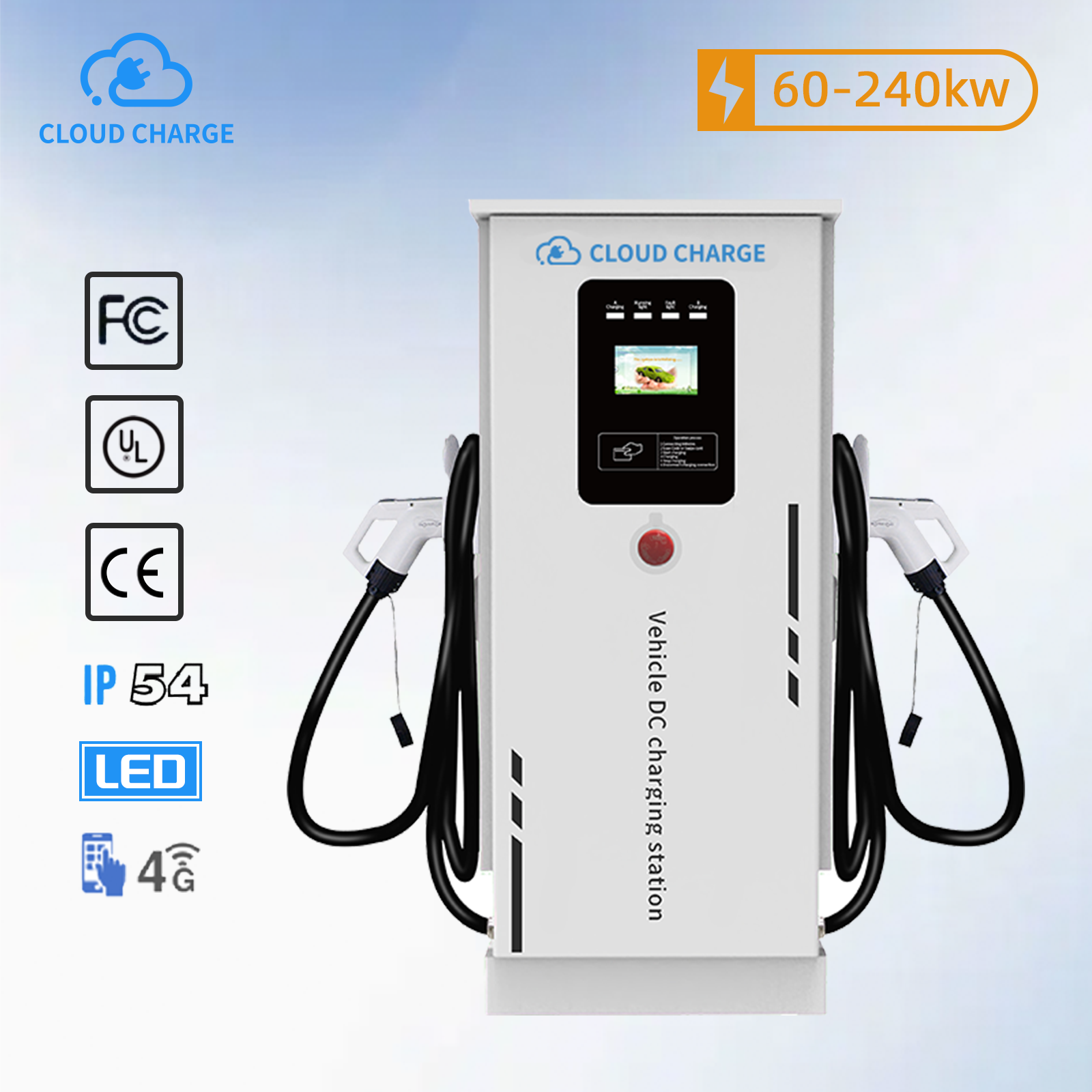

60-240kW DC EV Charger

Zhenwan’s 60kW–240kW all-in-one DC fast EV charger is engineered for commercial use, offering high-power, efficient charging for electric vehicles and fleets. Designed with a modular power system, this charger supports single or dual-gun outputs, dynamic load balancing, and full compatibility with CCS2 and GB/T connectors. It is ideal for urban charging stations, fleet depots, and highway service areas, especially in markets across Southeast Asia, South America, and the Middle East.
Availability:
Quantity:
Inquire Add to Basket

Model
60kW
80kW
120kW
160kW
180kW
240kW
Phases/Lines
3 phase+ neutral + PE
AC Nominal Input Voltage
304~456V AC
Frequency
45-65Hz
Output Power
60kW
80kW
120kW
160kW
180kW
240kW
Connector-single gun
CCS2
GBT
CCS1
CHAdeMO
Connector-two gun
CCS2+CCS2
GBT+GBT
CCS2+GBT
CC1+CCS2
CCS2+CHAdeMO
Connector-three gun
CCS2+CCS2+AC type2
CCS2+GBT+AC type2
CCS2+CHAdeMO+AC type2
Voltage
50VDC-1000VDC
Cable Length
5m
Power Factor
≥0.99
THD Value
≤5%
Stable Voltage Accuracy
≤±0.5%
Stable Current Accuracy
≤±1%
Efficiency
≥94%
Module Number
30kW+30kW
Installation Method
Vertical installation of ground
LED Indicator
Green/Yellow/Red color for different states
Display
10.1 Screen
Emergency Stop Button
Yes
Payment Method
RFID Card/Phone APP with backend
Charger v.s. Backend
Ethernet/GPRS/4G communication
Communication Protocol
OCPP1.6J
Operating Temperature
-20ºC ~ +55ºC
Working Humidity
5% ~ 95% no condensation
Working Altitude
≤2000m
Protection Grade
IP54
Application Site
Indoor/Outdoor
Cooling Method
The fan cooling
Multiple Protection
Over/Under voltage protection
Overload protection
Short circuit protection
Over/Under temperature protection
Grounding protection
Surge protection
Leakage protection
Warranty
2 years

  • Reliable performance with stable output across power ranges

  • Flexible configurations for different charging scenarios

  • Easy deployment with compact footprint and simple wiring

  • Already in use in >10 export markets with positive feedback

  • Built to meet evolving global EV infrastructure standards
