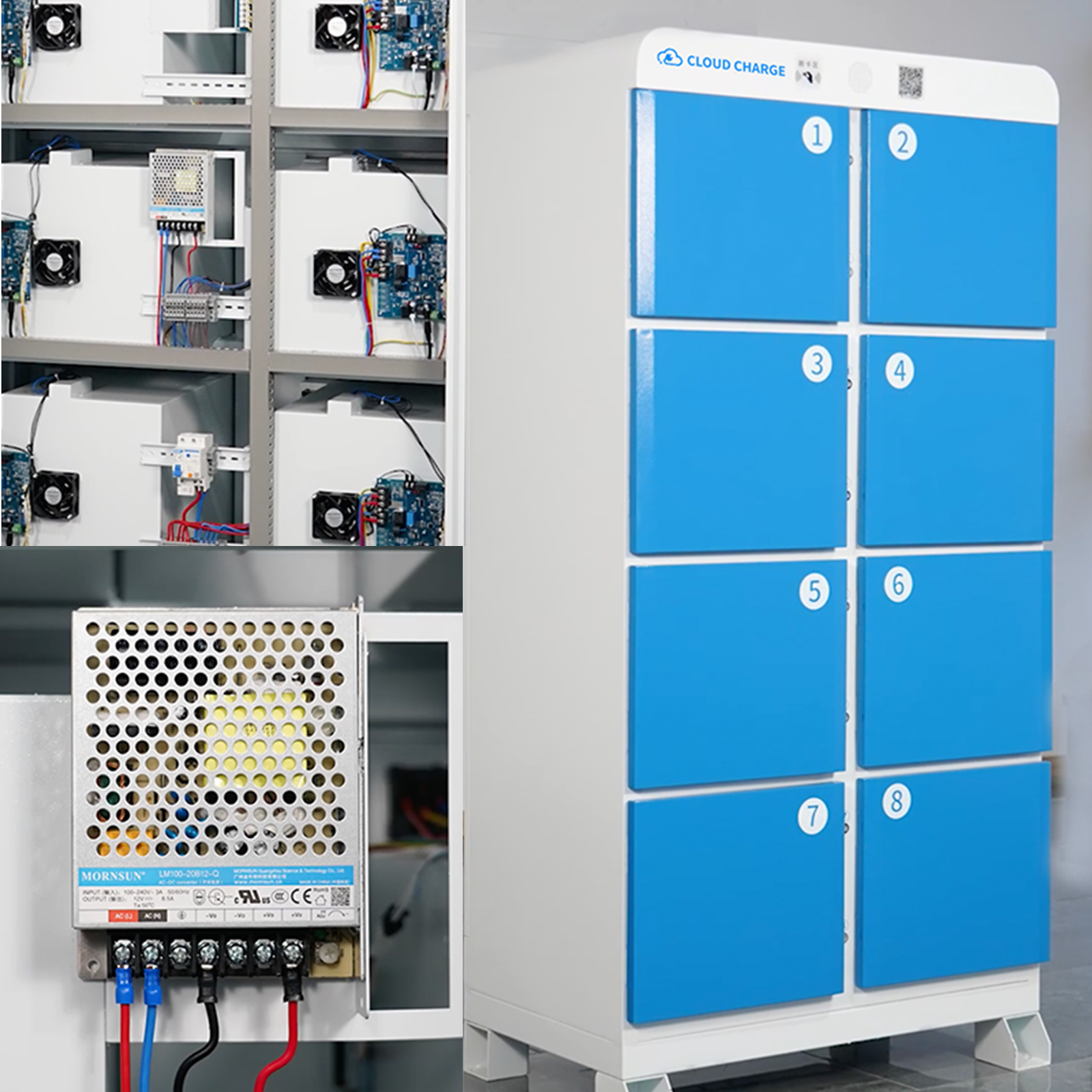

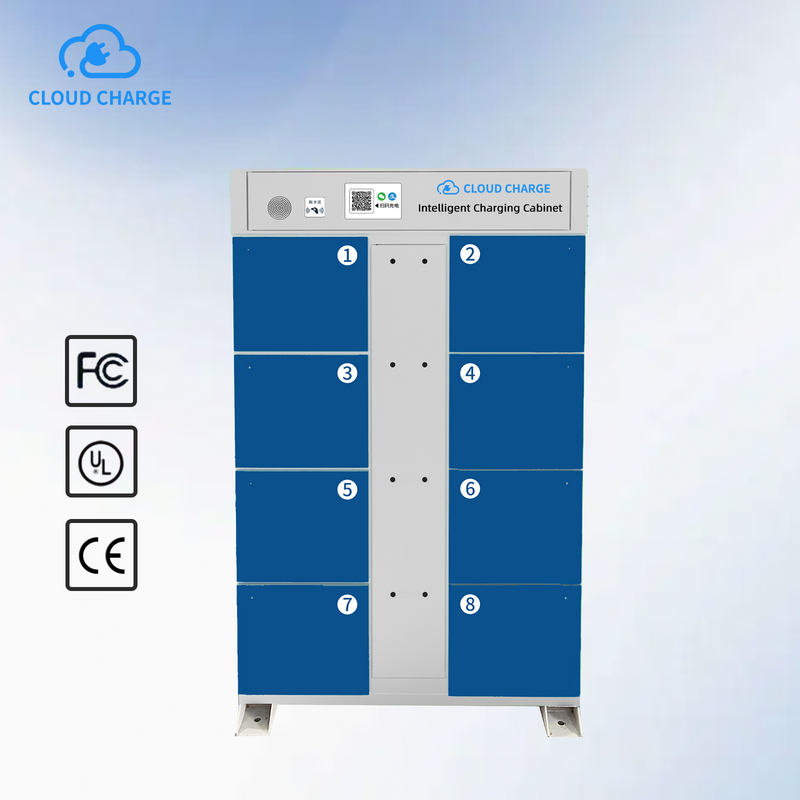

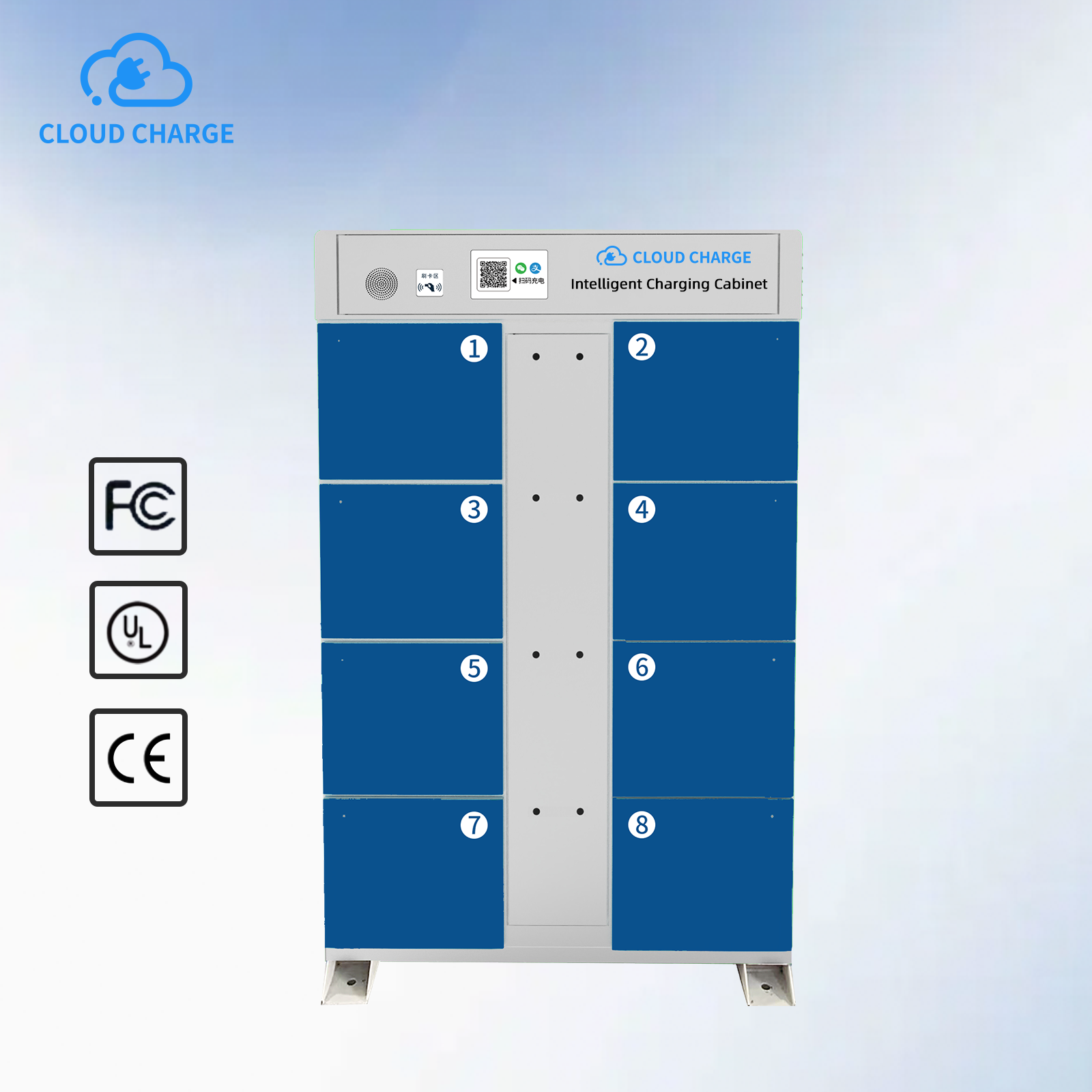

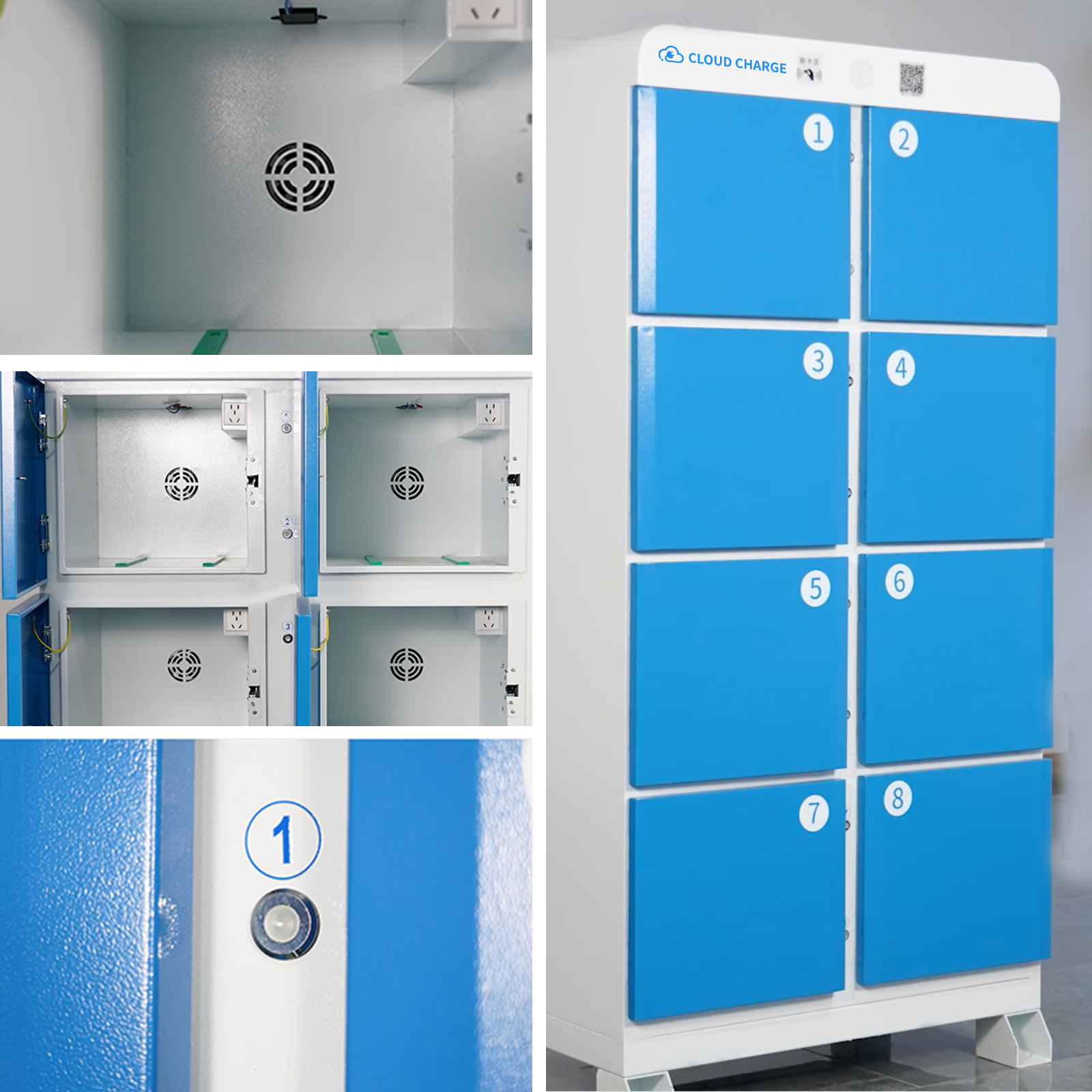

Smart Charging Cabinet

Zhenwan’s Smart Battery Swapping Cabinet is an intelligent solution for electric bike battery management, offering secure storage, efficient charging, and automated battery exchange in one integrated unit. Ideal for delivery platforms, bike-sharing operators, and urban mobility hubs, it supports real-time monitoring, user authentication, and cloud-based backend management, ensuring a safe and efficient battery swapping experience
Availability:
Quantity:
Inquire Add to Basket

Product Name
8-Port Smart Charging Cabinet
Model
ZW-CDG-8C
Input Operating Voltage
A220V±15%/50HZ
Maximum Total Load Power
8KW
Single Compartment Load Voltage
800W
Standby Power
3W
Device Output Ports
8 Ports
Charging Compartment Output Voltage
A220V±15%/50HZ Synchronous Output
Single Compartment Output Current:
Up to 5A (Configurable)
Case Material
Galvanized Steel Plate
Communication Method
4G
Operating Temperature Range:
-20℃-80℃
Operating Humidity Range:
20% to 80%RH
Cooling Method
Natural Cooling
Enclosure Protection Class
IP54
Safety Protection
Fully Metallic Enclosure
Temperature Alarm
Automatic Fire Extinguishment
Overload/Leakage Protection
Overvoltage/Overcurrent Protection

Tailored for high-frequency rider battery swapping

Ensures safe, unattended, 24/7 operation

Reduces battery downtime & improves delivery efficiency

Remote maintenance & monitoring via cloud dashboard

Already deployed in urban districts and rider hubs in Southeast Asia and China
