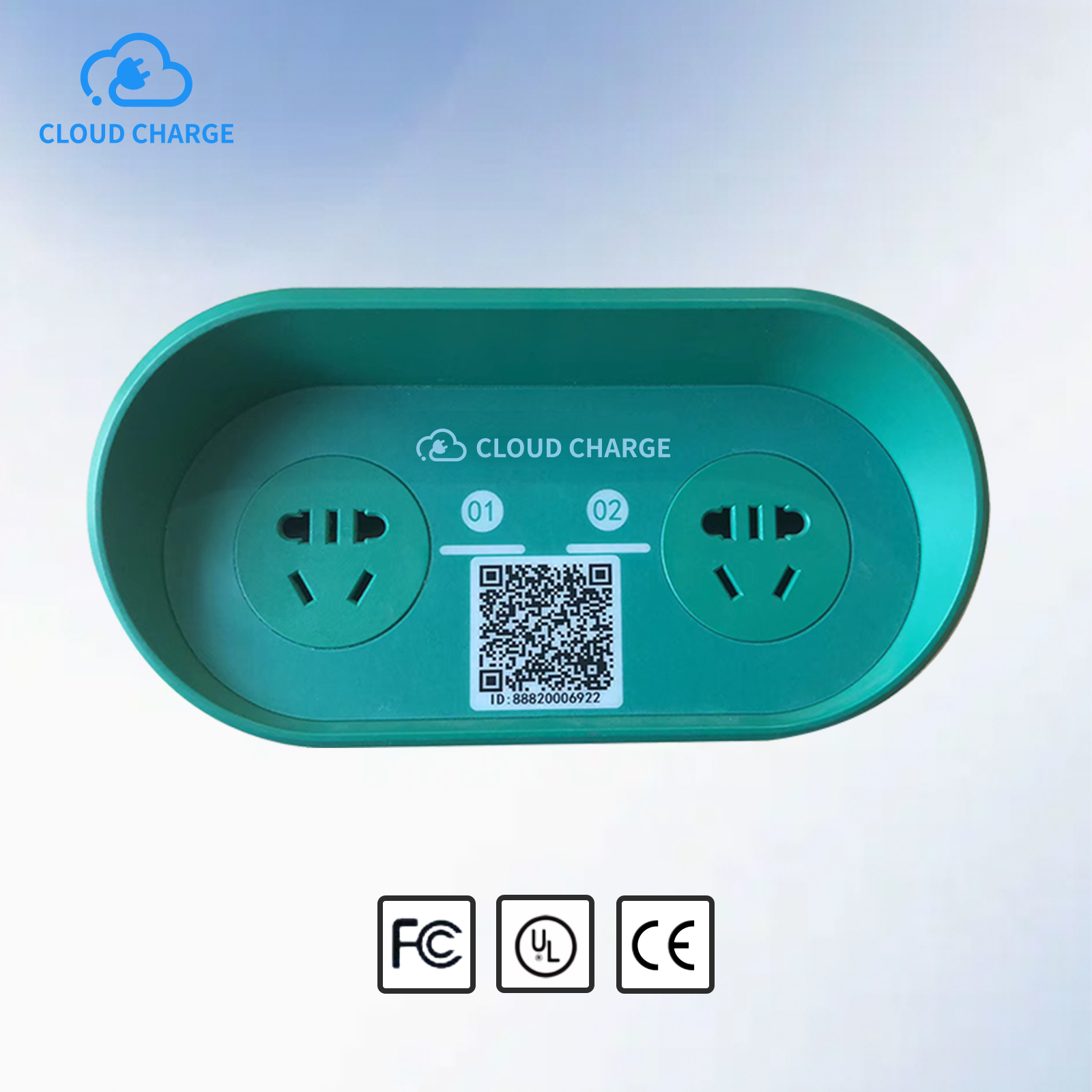

2-Port Distributed Charging Station

Zhenwan’s 2-Port Distributed Charger is designed specifically for electric bicycles and scooters, offering a compact and safe charging solution for shared mobility, residential compounds, and delivery rider stations. Each unit supports two independent charging ports, with smart power distribution and real-time safety protection, making it perfect for urban micro-mobility networks.
Availability:
Quantity:
Inquire Add to Basket

Model
ZW-G2-JY-A
Input Working Voltage
AC 100-220V / 50-60Hz
Maximum Load Power
2KW
Recommended Input Main Wire
BVR 4mm² (Copper Core)
Standby Power
3W
Number of Output Circuits
2 circuits
Single Channel Output Voltage
AC 180V-250V / 50-60Hz Synchronized Output
Single Channel Output Current
5A (Adjustable)
Recommended Output Main Wire
BVR 4mm² (Copper Core)
Wireless + Wired Communication
- 4G (Supports ZigBee wireless communication)
- ZigBee wireless (Supports 4G extension)
Supported Payment Methods
Alipay
WeChat
Card Swipe
Operating Temperature
-20°C ~ 50°C
Overload Protection Response Time
≤10 ms
External Dimensions
240 mm × 115 mm × 80 mm
Weight
2KG

  • Designed specifically for urban micro-mobility infrastructure

  • Compact and safe for shared-use and personal charging

  • Compatible with all mainstream two-wheeler battery specs

  • Smart and scalable—ideal for mass deployment in cities

  • Already trusted by rider platforms and real estate developers


臻万科技--详情页_01臻万科技--详情页_02臻万科技--详情页_03臻万科技--详情页_04臻万科技--详情页_05臻万科技--详情页_06臻万科技--详情页_07臻万科技--详情页_08
